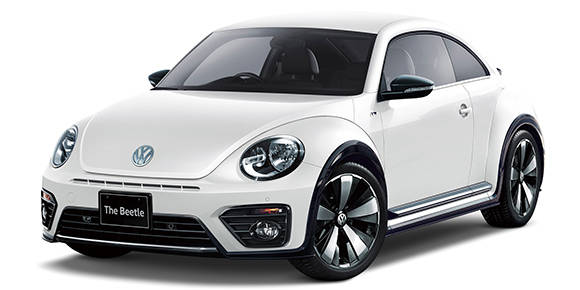

VOLKSWAGEN THE BEETLE R LINE

VOLKSWAGEN THE BEETLE

16CZD · R LINE

Description

Modification: R LINE
Chassis ID: 16CZD
Dates releasing: 2018.1~
Base price, ¥: ABA-16CZD
Body size: 4285x1825x1495
Interior (LxWxH): ----x----x----
Wheelbase: 2535
Track f/r: 1570mm/1535mm
Full weight, kg: 1340
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

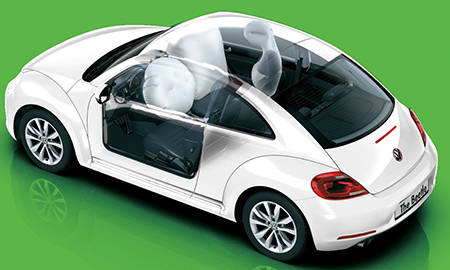

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓

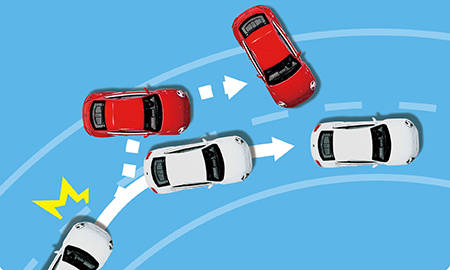

Additional equipment: ESC(エレクトロニックスタビリティコントロール)

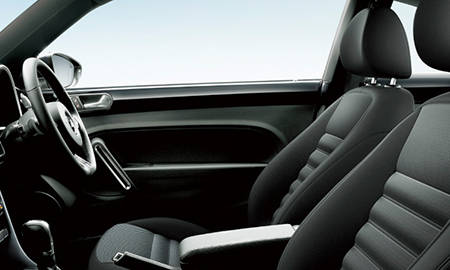

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

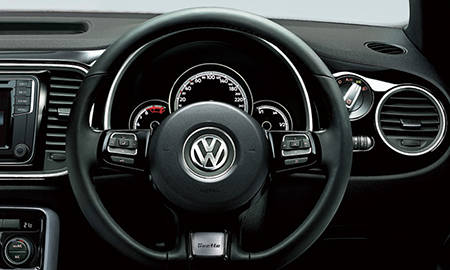

Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

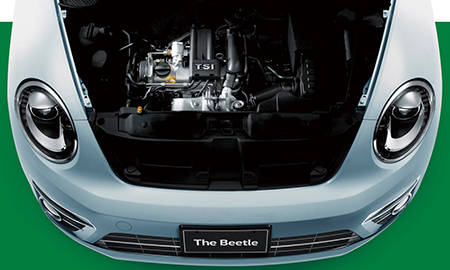

Engine

Model: CZD
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 74.5x80.0
Engine size, cc: 1394
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 150ps(110kW)/5000~6000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~3500rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut (stabilizer attaching)
Rear suspension: 4リンク (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/45R18
Rear wheel: 235/45R18
Min turn diameter, m: 5.0

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

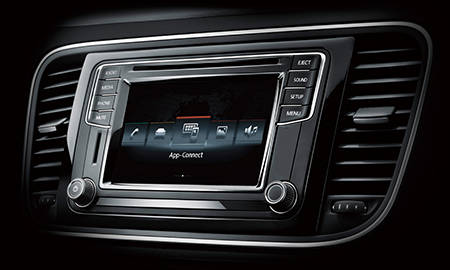

Navigation & sound

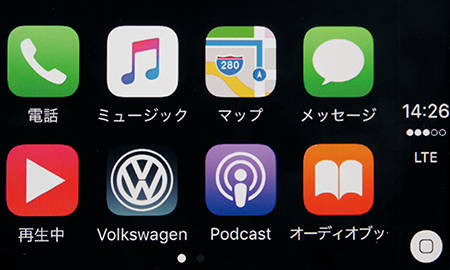

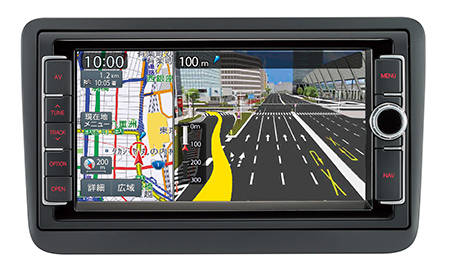

Navigation: ◯
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	4.169

Available colors

black / Other blackwhite / Pure Whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
