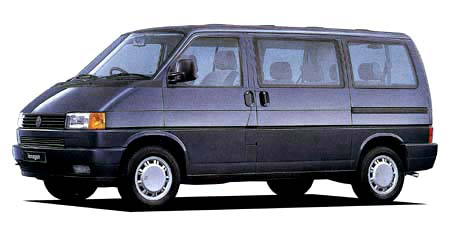

VOLKSWAGEN VANAGON GL

VOLKSWAGEN VANAGON

70ACU · GL

Description

Modification: GL
Chassis ID: 70ACU
Dates releasing: 1995.10~
Base price, ¥: E-70ACU
Body size: 4655x1840x1965
Interior (LxWxH): ----x----x----
Wheelbase: 2920
Track f/r: 1590mm/1545mm
Full weight, kg: 1760
Body type: MV 1Box
Doors / seats: 4 door / 7

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ACU
Type: inline 5 cylinder SOHC
Bore x stroke, mm: 81.0x95.5
Engine size, cc: 2460
Compression ratio: 10.0
Fuel injection: 電子制御 type 燃料噴射装置(デジファン&
Max power, hp/rpm: 110ps(81kW)/4500rpm
Max torque, Nm/rpm: 19.8kg m(194.2N m)/2200rpm
Supercharger: ×
Fuel tank, liters: 95 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 13.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone (スタビライザーバー付)
Rear suspension: セミトレーリングアーム
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: 205/65R15
Rear wheel: 205/65R15
Min turn diameter, m: 5.4

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreen / Other greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold
