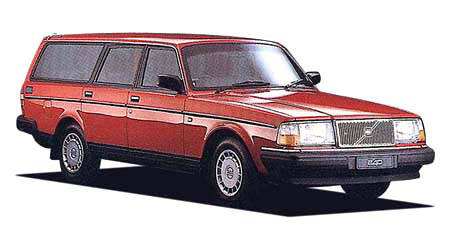

VOLVO 240 WAGON 240GL WAGON

VOLVO 240 WAGON

AB230W · 240GL WAGON

Description

Modification: 240GL WAGON
Chassis ID: AB230W
Dates releasing: 1989.10~
Base price, ¥: E-AB230W
Body size: 4785x1715x1475
Interior (LxWxH): ----x----x----
Wheelbase: 2650
Track f/r: 1430mm/1360mm
Full weight, kg: 1380
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B230
Type: water cooling inline 4 cylinder OHC
Bore x stroke, mm: ----x----
Engine size, cc: 2316
Compression ratio: 9.8
Fuel injection: ----
Max power, hp/rpm: 115ps(85kW)/5400rpm
Max torque, Nm/rpm: 18.9kg m(185.3N m)/2750rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: 5リンクコンスタントトラック
Front brake: disk
Rear brake: disk
Front wheel: 185/70R14
Rear wheel: 185/70R14
Min turn diameter, m: 5.0

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.452	1.452	1.000	0.690	—	—	—	—	2.212

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Light blue metallicMagentaSilverRedBlue / Other BlueDark cyanPearlGold
