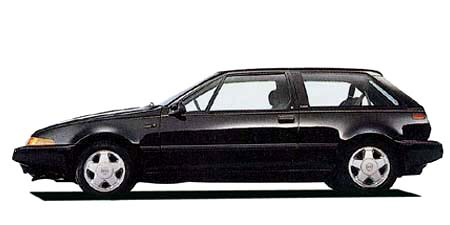

VOLVO 480 TURBO

VOLVO 480

4B18 · TURBO

Description

Modification: TURBO
Chassis ID: 4B18
Dates releasing: 1989.10~
Base price, ¥: E-4B18
Body size: 4300x1685x1330
Interior (LxWxH): ----x----x----
Wheelbase: 2505
Track f/r: 1415mm/1425mm
Full weight, kg: 1040
Body type: Hatch
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 14 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B18
Type: water cooling inline 4 cylinder OHCIC-turbo
Bore x stroke, mm: 81.0x83.5
Engine size, cc: 1721
Compression ratio: 8.1
Fuel injection: 電子 type 燃料噴射(マルチポイント)
Max power, hp/rpm: 115ps(85kW)/5400rpm
Max torque, Nm/rpm: 17.8kg m(174.6N m)/4200rpm
Supercharger: IC turbo
Fuel tank, liters: 49 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: スタビライザー付 McPherson Strut type
Rear suspension: スタビライザー付ワッツリンク
Front brake: disk
Rear brake: disk
Front wheel: 185/60R14
Rear wheel: 185/60R14
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.091	1.842	1.320	0.967	0.758	—	—	—	3.345

Available colors

black / Black MetallicwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
