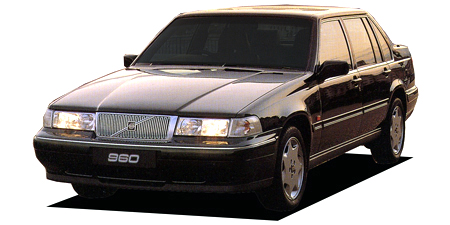

VOLVO 960 3.0

VOLVO 960

9B6304 · 3.0

Description

Modification: 3.0
Chassis ID: 9B6304
Dates releasing: 1995.9~
Base price, ¥: E-9B6304
Body size: 4870x1755x1435
Interior (LxWxH): ----x----x----
Wheelbase: 2770
Track f/r: 1500mm/1515mm
Full weight, kg: 1590
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

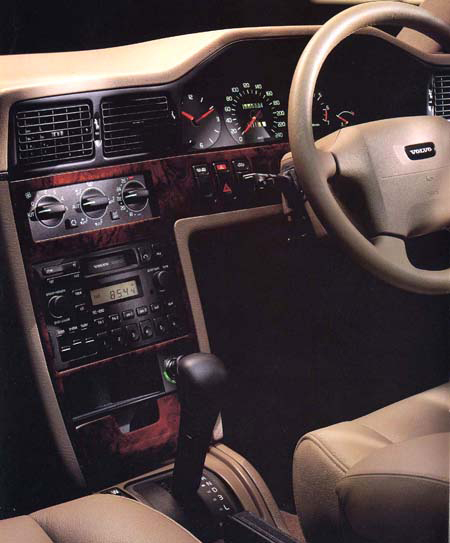

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B6304
Type: water cooling inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: ----x----
Engine size, cc: 2921
Compression ratio: 10.7
Fuel injection: モトロニック
Max power, hp/rpm: 200ps(----kW)/6000rpm
Max torque, Nm/rpm: 27.2kg m(----N m)/4300rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 14.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link Independent suspension 横置きリーフスプリング
Front brake: disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 4.8

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.804	1.532	1.000	0.754	—	—	—	—	2.394

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown)Olive / Other OliveNavy blue / Other Navy bluePurple / Other PurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyan / Other Dark cyanPearlGold
