JDM Vehicle Catalog

Vehicle Specs

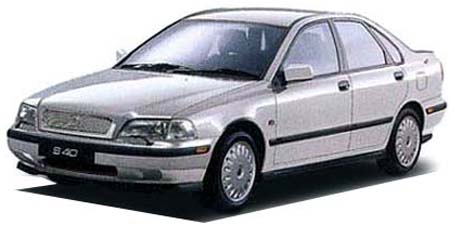

VOLVO S40 T-4

VOLVO S40

4B4194 · T-4

Description

Modification: T-4
Chassis ID: 4B4194
Dates releasing: 1997.10~
Base price, ¥: E-4B4194
Body size: 4485x1720x1410
Interior (LxWxH): ----x----x----
Wheelbase: 2550
Track f/r: 1455mm/1475mm
Full weight, kg: 1340
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: シングル
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B4194
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 81.0x90.0
Engine size, cc: 1855
Compression ratio: 8.5
Fuel injection: EMS2000
Max power, hp/rpm: 200ps(147kW)/5500rpm
Max torque, Nm/rpm: 30.6kg m(300.1N m)/2400~3900rpm
Supercharger: IC turbo
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: マルチリンク
Front brake: disk
Rear brake: disk
Front wheel: 195/55R15
Rear wheel: 195/55R15
Min turn diameter, m: 5.3

Gearbox

Number of stages: 5MT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.385	1.905	1.194	0.868	0.660	—	—	—	3.300

Available colors

black / Black Metallicwhitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurple / Other PurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
