JDM Vehicle Catalog

Vehicle Specs

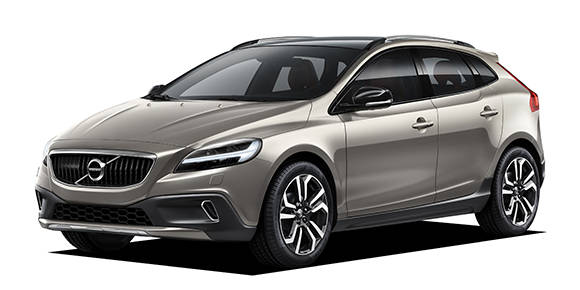

VOLVO V40 CROSS COUNTRY T5 AWD CLASSIC EDITION

VOLVO V40

MB420XC · CROSS COUNTRY T5 AWD CLASSIC EDITION

Description

Modification: CROSS COUNTRY T5 AWD CLASSIC EDITION
Chassis ID: MB420XC
Dates releasing: 2019.10~
Base price, ¥: CBA-MB420XC
Body size: 4370x1800x1470
Interior (LxWxH): ----x----x----
Wheelbase: 2645
Track f/r: 1550mm/1540mm
Full weight, kg: 1590
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: SIPS(側面衝撃吸収システム) スポーツモード付ESC(エレクトロニックスタビリ&#1

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: 特殊形状
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B420
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.0x93.2
Engine size, cc: 1968
Compression ratio: 10.8
Fuel injection: 電子燃料噴射
Max power, hp/rpm: 245ps(180kW)/5500rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1500~4800rpm
Supercharger: IC turbo
Fuel tank, liters: 57 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: disk
Rear brake: disk
Front wheel: 225/45R18
Rear wheel: 225/45R18
Min turn diameter, m: 5.4

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.250	3.029	1.950	1.457	1.221	1.000	0.809	0.673	4.015

Available colors

black / Other blackwhite / Ice WhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold / Other Gold
