VOLVO V40 T4 SE

VOLVO V40

MB4164T · T4 SE

Description

Modification: T4 SE
Chassis ID: MB4164T
Dates releasing: 2013.12~
Base price, ¥: DBA-MB4164T
Body size: 4370x1785x1440
Interior (LxWxH): ----x----x----
Wheelbase: 2645
Track f/r: 1545mm/1535mm
Full weight, kg: 1430
Body type: Wagon
Doors / seats: 5 door / 5

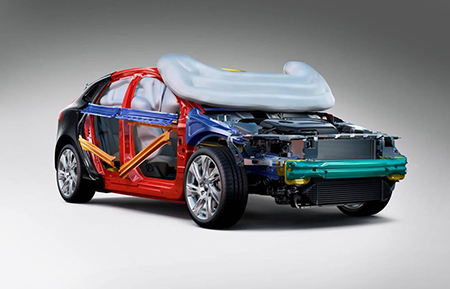

Safe equipment

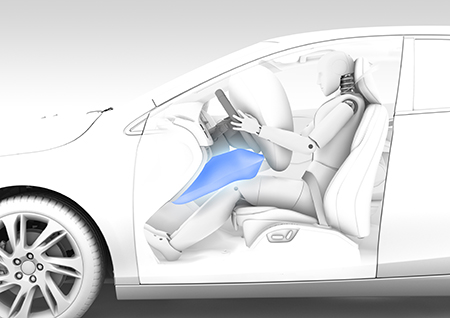

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: スポーツモード付DSTC(ダイナミックスタビリティ&トラクションコントロ&#12540

Comfort

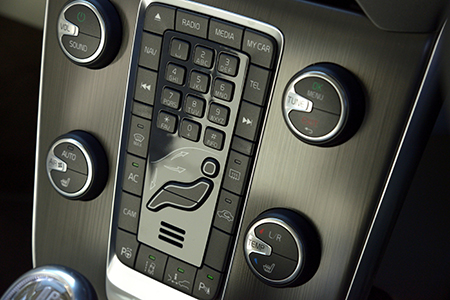

Air conditioner: Full Auto
Power window: ✓
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓

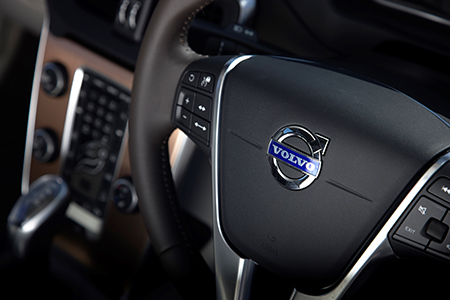

Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×

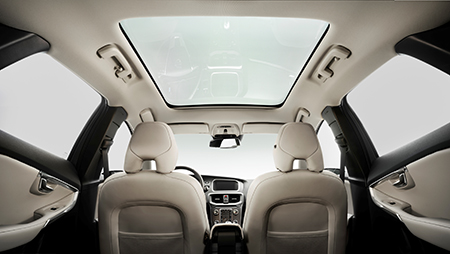

Sunroof: ◯

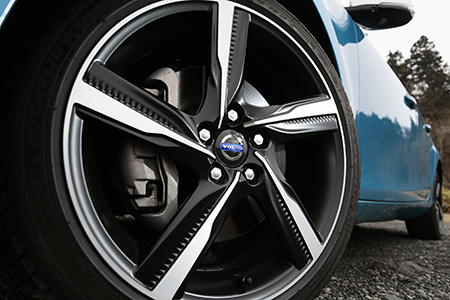

Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B4164T
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 79.0x81.4
Engine size, cc: 1595
Compression ratio: 10.0
Fuel injection: 電子燃料噴射
Max power, hp/rpm: 180ps(132kW)/5700rpm
Max torque, Nm/rpm: 24.5kg m(240N m)/1600~5000rpm
Supercharger: IC turbo
Fuel tank, liters: 62 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: マルチリンク
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 5.7

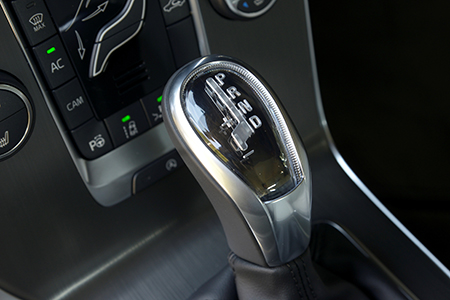

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.818	2.150	1.407	1.029	1.188	0.971	—	—	5.284

Available colors

black / Other blackwhite / Ice WhitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Crystal White PearlGold / Other Gold
