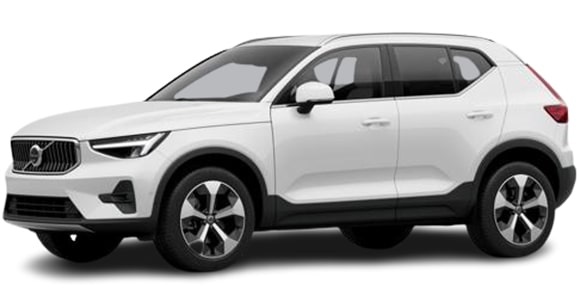

VOLVO XC40 PLUS B4 AWD

VOLVO XC40

XB420TXCM2 · PLUS B4 AWD

Description

Modification: PLUS B4 AWD
Chassis ID: XB420TXCM2
Dates releasing: 2024.4~
Base price, ¥: 5AA-XB420TXCM2
Body size: 4440x1875x1655
Interior (LxWxH): ----x----x----
Wheelbase: 2700
Track f/r: 1600mm/1625mm
Full weight, kg: 1710
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: IC(インフレータブルカーテン)-頭部側面衝撃吸収エアバッグ WHIPS(後部衝撃吸&#2

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: B420T5
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo +
Bore x stroke, mm: 82.0x93.2
Engine size, cc: 1968
Compression ratio: 12.0
Fuel injection: 電子燃料噴射
Max power, hp/rpm: 197ps(145kW)/4750~5250rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/1500~4500rpm
Supercharger: IC turbo
Fuel tank, liters: 53 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: disk
Rear brake: disk
Front wheel: 235/55R18
Rear wheel: 235/55R18
Min turn diameter, m: 5.7

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.529	2.810	1.395	1.043	1.105	0.851	0.725	—	2.905

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
