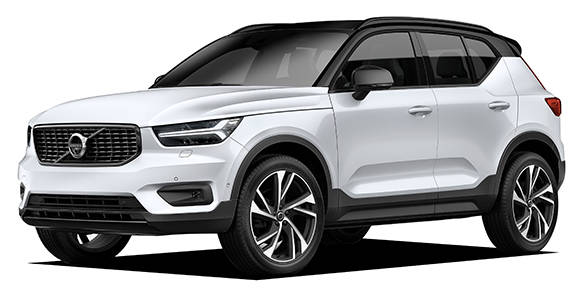

VOLVO XC40 T5 AWD R-DESIGN

VOLVO XC40

XB420XC · T5 AWD R-DESIGN

Description

Modification: T5 AWD R-DESIGN
Chassis ID: XB420XC
Dates releasing: 2019.10~
Base price, ¥: DBA-XB420XC
Body size: 4425x1875x1660
Interior (LxWxH): ----x----x----
Wheelbase: 2700
Track f/r: 1600mm/1625mm
Full weight, kg: 1690
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: IC(インフレータブルカーテン)-頭部側面衝撃吸収エアバッグ WHIPS(後部衝撃吸&#2

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ×
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: B420
Type: water cooling inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.0x93.2
Engine size, cc: 1968
Compression ratio: 10.8
Fuel injection: 電子燃料噴射
Max power, hp/rpm: 252ps(185kW)/5500rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1800~4800rpm
Supercharger: IC turbo
Fuel tank, liters: 53 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link
Front brake: disk
Rear brake: disk
Front wheel: 235/50R19
Rear wheel: 235/50R19
Min turn diameter, m: 5.7

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

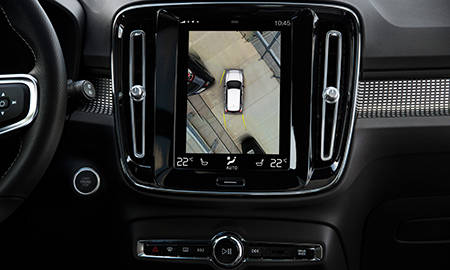

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.250	3.029	1.950	1.457	1.221	1.000	0.809	0.673	4.015

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Crystal White PearlGold
